|Place of Origin:||China|
|Certification:||CE,CB, LFGB, SGS|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||OEM color box or brown shipping carton. Mainly based on customer's standard|
|Delivery Time:||As usual, during 20-25 days once the order is confirmed|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||500pcs per day|
|Products Material:||Plastic||Products Color:||To Be Done Based On Customer's Requirement|
|Products Usage:||Household To Get The Instant Boiling Water For Drinking||Products Function:||3 Seconds To Get The Instant Boiling Water|
|Products Packing:||OEM Packing|
wall mounted hot water dispenser,
wall mounted water dispenser
Plastic Case Wall Mounted Instant Hot Water Dispenser Red Color Touch Screen
Products simple description :
Thank you for using the new generation multifunctional rapid heater
Wall-mounted instant boiling water heater GWS-8B24 has following functions and features:
(1) Cooling function, temperature low as12 ℃
(2) Water output within 3 seconds, boiled water without waiting
(3) Touch screen, user friendly
(4) Intelligent program control; output water with required temperature and volume, operation simplified.
(5)Fashionable and exquisite appearance, high quality.
(6) 3 steps of boil dry protection in sequence, liquid level alarm, thermal resistor, and temperature control.
|Input Water Source||Purified/Filtered Water|
|Input Water Pressure||0.1-0.4Mpa|
|Working Environment Temperature||5℃-38℃|
|Working EnvironmentHumidity||≤ 90%|
|Water Heating Capacity||20L/h (≥90°C)|
Working Process and Process Flow:
Products operation :
Instructions for Function Buttons :
1.COLD: One touch will release around 150ml cold water, or you can stop it whenever by touching it again. The LED monitor will show the real-time temperature inside the inner cooler.
2.HOT/150ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/150ml” whenever you want to stop the work.
3.HOT/250ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/250ml” whenever you want to stop the work.
CAUTION: Please do touch the outlet when the machine is releasing hot water(99℃).

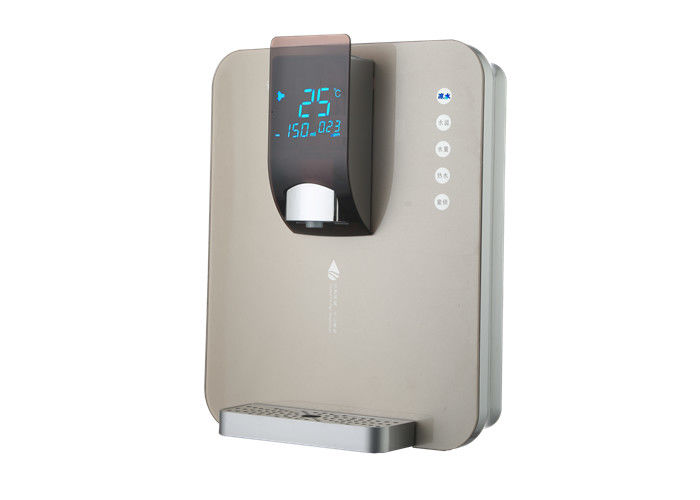

Products photo as following:
Organic media is not allowed to be used for cleaning the surface of the machine.
NINGBO GOOD WATER SOURCE ENVIRONMENTAL PROTECTION ELECTRICAL APPLIANCE CO.,LTD
Contact person: Jack Liu
Contact phone: (86) 13884494576
