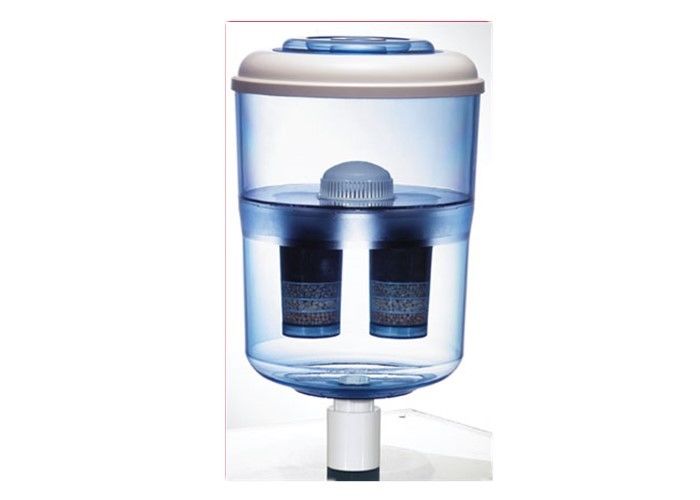

Large Water Output Filter Bottle For Water Dispenser With 2 Filters Inside

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: LFGB. SGS
Model Number: GWS-C
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: OEM color box or normal shipping carton
Delivery Time: As usual, during 20-25 days once the order is confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per day
Products Material: AS Products Function: To Filter The Water To Get The Pure Drinking Water
Products Usage: Family, Office, Hotel, School, Etc Filter Life: 2-3 Months,mainly Based On The Water Quality
Products Capacity: 15-18L
High Light:

mineral water pot

,

water cooler filter bottle

OPERATION GUIDE



1. Open box and remove all contents

2. Unscrew the filter base and cover the filter parts in cold water and

let them soak for 30 minutes

3. Wash the two half’s of the bottle with soap and cold water before the

first use and wash regularly there after

4 .Assemble the filter except the ceramic disk. Place the silicone ring

around the neck of the filter as shown in diagram.

5. Assemble the two half’s of the bottle and place the filter in the top

bucket, push down firmly to avoid leakage. Now screw on the filter mask

6.Place the bottle in sink, fill the top bucket with water and let it

drain away.

7. When the water has drained away remove filter from bottle. Now place

the silicone ring and ceramic disk on base of filter, screw cover onto

filter bottom.

8.Rinse lower bucket and assemble bottle, Place filter in the top

bucket as before. Now place bottle on water dispenser and fill the top

bucket.

9. Never have both top and bottom buckets filled at the same time.





When  to change your filter



It is important to change the filter before it is exhausted. It is recommended to replace your filter approximately every 6 months or 2000L which ever comes





Cleaning your water filtration system .





Being away for a long time





Useful tips & precautions :





This unit is not diswasher safe



         The water filtering speed can become a little slow when the quantity of water in the outer bucket increase



         Dirty ceramic Dirty ceramic disc also  cause a decrease in speed.

Keep your uni

                                  Keep your unit  in a dry place and out of direct sunlight.



Please make             Please make sure to clean the inner bucket regularly to avoid dirt and calcium build up

Rated water amount             Water flow capacity          Pressure
  2500L  6L/h   Normal






Products Sketch drawing  :



Large Water Output Filter Bottle For Water Dispenser With 2 Filters Inside 0



Products Test reports  :



Large Water Output Filter Bottle For Water Dispenser With 2 Filters Inside 1



Contact details  :



NINGBO GOOD WATER SOURCE ENVIRONMENTAL PROTECTION ELECTRICAL APPLIANCE CO.,LTD



Contact person:  Jack  Liu



Contact e-mail:  jackliu_qingqing@vip.126.com



Contact phone: (86) 13884494576



Skype:  jackliu06316



Wechat:  Jackliu8886
