Liquid Level Alarm Wall Mounted Hot Water Dispenser With Boil Dry Protection

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE,CB, LFGB, SGS
Model Number: GWS-8B25-C
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: OEM color box or brown shipping carton. Mainly based on customer's standard
Delivery Time: As usual, during 20-25 days once the order is confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs per day
Products Material: Plastic Products Color: To Be Done Based On Customer's Requirement
Products Usage: Household To Get The Instant Boiling Water For Drinking Products Function: 3 Seconds To Get The Instant Boiling Water
Products Packing: OEM Packing
High Light:

wall mounted water dispenser

,

wall mounted boiling water dispenser

Plastic Case Wall Mounted Instant Hot Water Dispenser Red Color Touch Screen



Products  simple description :





Thank you for using the new generation multifunctional rapid heater



Wall-mounted instant boiling water heater  GWS-8B24 has following functions and features:



(1) Cooling function, temperature low as12 ℃

(2) Water output within 3 seconds, boiled water without waiting

(3) Touch screen, user friendly

(4) Intelligent program control; output water with required temperature and volume, operation simplified.

(5)Fashionable and exquisite appearance, high quality.

(6) 3 steps of boil dry protection in sequence, liquid level alarm, thermal resistor, and temperature control.







Technical Parameters:





Voltage 220V~
Frequency 50Hz
Power

Heating: 2130W

Cooling: 70W

Input Water Source Purified/Filtered Water
Input Water Pressure 0.1-0.4Mpa
Working Environment Temperature 5℃-38℃
Working EnvironmentHumidity ≤ 90%
Water Heating Capacity 20L/h (≥90°C)
Power Consumption ≤0.1kW·h/24h







Working Process and Process Flow:



Liquid Level Alarm Wall Mounted Hot Water Dispenser With Boil Dry Protection 0




Products operation :



Liquid Level Alarm Wall Mounted Hot Water Dispenser With Boil Dry Protection 1





Instructions for Function Buttons :







1.COLD: One touch will release around 150ml cold water, or you can stop it whenever by touching it again. The LED monitor will show the real-time temperature inside the inner cooler.



2.HOT/150ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/150ml” whenever you want to stop the work.



3.HOT/250ml: After touching, the heater starts to work and the LED monitor will show the real-time temperature inside the heater. Once the temperature reaches 99℃, 150ml water will be released from the outlet. Or you can touch “HOT/250ml” whenever you want to stop the work.



CAUTION: Please do touch the outlet when the machine is releasing hot water(99℃).

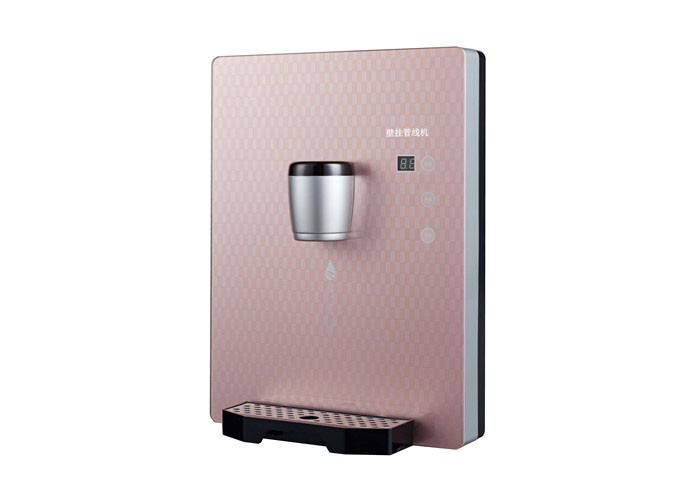

Products photo as following:



Liquid Level Alarm Wall Mounted Hot Water Dispenser With Boil Dry Protection 2Liquid Level Alarm Wall Mounted Hot Water Dispenser With Boil Dry Protection 3







Daily Maintenance:





  1. Do not place any part of this dispenser in water or any other liquid.
  2. Place the dispenser away from direct sunlight.
  3. Keep the dispenser out the reach of Kids.
  4. Don’t remove the cup when hot water is streaming out.

Organic media is not allowed to be used for cleaning the surface of the machine.
