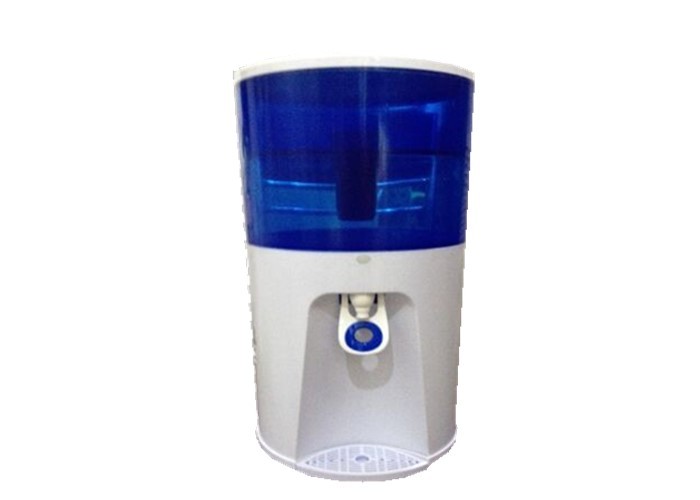

Counter Top Cold 8.5l Mini Water Cooler Dispenser With Filtration Function

Basic Information
Place of Origin: China
Brand Name: OEM
Certification: CE,CB,SAA,etc
Model Number: YSJ-6X68
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Color box, white box, brown carton, etc. Each unit into each box, the box dimension is 305 x 305 x 493(mm). 1 x 20GP: 630 units, 1 x 40 GP: 1282 units, 1 x 40 (HQ): 1500 units
Delivery Time: As usual, during 20-25 days once the order is cofirmed. This mainly is based on the customer's order quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: As usual, 600 units for 8 hours working time
Products Body Material: ABS Products Function: To Cool The Water To Get The Chilling Filtration Water For Drinking
Products Application: Family, Office,hotel, Etc Products Type: Small Household Applicance
Products Usage: To Chill The Water
High Light:

8.5 l mini water cooler dispenser


odm mini water cooler dispenser


abs cooler water dispenser mini


8.5L counter top cold water dispenser with filtration


Products components checklist:


Number Products Description
1 Filter change indicator
2 Unfiltered water chamber

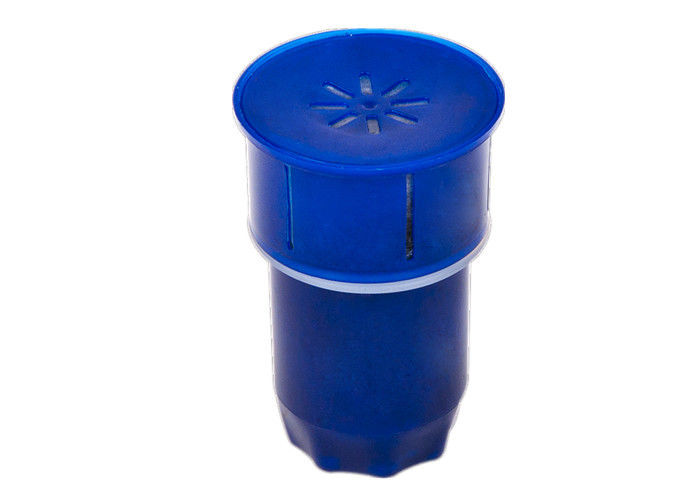

3 Filter cartridge
4 Indicator light
5 water tap
6 Drip tray


Counter Top Cold 8.5l Mini Water Cooler Dispenser With Filtration Function 0


Counter Top Cold 8.5l Mini Water Cooler Dispenser With Filtration Function 1

Technical and Replacement filters



  System Specification
Electrical Requirements 220 - 240V , 50/60 Hz
Input cooling 61 Watts
Filter replacement model
Filter cartridge life 150 litres or 2 months
Filter cartridge flow rate 100-400ml/minute
Filter reduction capabilities Chlorine, lead, copper, etc
Products weight 3.2 KGS
Total water tank capacity 8.5L
Filtered water tank capacity 5L
Unfiltered water tank capacity 3.5L


Sterilising and Cleaning Instructions


It is important to follow the sterilising and cleaning process below before using and as part of your regular maintenance routine:


  1. Combine two tablespoons of baking soda with 2 litres of lukewarm water in a separate container
  2. Remove the unfiltered water chamber from the cooler
  3. Pour the bicarbonate solution into the water chamber
  4. Press the water dispenser until water pours from the tap
  5. Cycle the bicarbonate solution through the tap and empty into the top water chamber, Repeat this procedure several times
  6. Turn on the power and leave for at least 4 hours
  7. Drain all the bicarbonate solution until empty
  8. Remove the drain plug from underneath the unit to drain any water or solution in the cooling tank. This is vital to ensure the solution is expelled from the cooler
  9. While the drain plug is open, rinse the unit with 2 litres of clean water to remove any bicarbonate solution
  10. Refit the top and water chamber
  11. Flush clean water through the unit and drain out via the tap, Tilt the unit forward and backward to expell all water from unit

Products simple operation introduction :



Before first use :



Prepare Filter



Insert filter and ensure it sits flat and fully seated


Counter Top Cold 8.5l Mini Water Cooler Dispenser With Filtration Function 2





When you turn on the switch to " on" at the back of the unit , you will see RED LIGHT indicating the water


cooler is chilling the water . When the indicator light from RED LIGHT to BLUE LIGHT indicating the water


approximatly 800ml cold tank has fully chilled .



Red Light : Water is chilling

Blue Light: The water has fully chilled for drinking

Technical and Replacement filters


Maintenance :



Notices :


If the water cooler has not been used for some time , unplug the unit , drain all the water and clean with warm soapy water .



Flush the water cooler and empty all water out through the water tap or tearing out the bottom small


silicone tube



Position :
